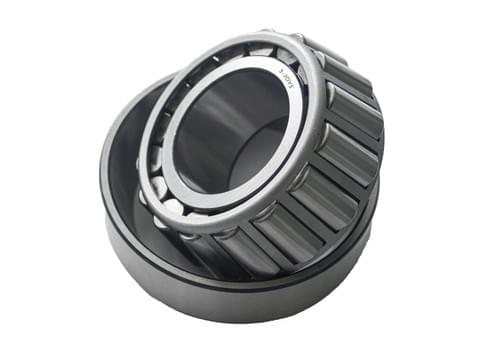

Tapered Roller Bearings
$0.19
Tapered roller bearings consist of four interdependent components: the cone (inner ring),the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.
Quantity
Coming soon
More Details
Tapers roller bearings are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preload mounting can be made.
Chrome-steel products
METRIC SERIES BORD DIAMETER(MM)
32900 10-280
32000X 10-260
30200 10-220
30300 10-190
32200 10-220
32300 30-170
33000 10-150
33100 10-120
33200 10-105
31300 10-150
INCH SETIES
Bore diameter is 0.5901-10.5in,all series of earings
Carno-steel products
METRIC SERIES BORE DIAMETER(MM)
32000X 10-90
30200 10-80
30300 10-90
32200 10-80
32300 10-90
33100 10-60
INCH SETIES
Bore diameter is 0.5901-3.5in,all series of bearings
