Deep Groove Ball Bearings: Core Advantages & Guide

Bearing Suffix Definitions

• RS: Single-side contact rubber seal
• 2RS: Double-side contact rubber seal
• RZ: Single-side non-contact rubber seal
• 2RZ: Double-side non-contact rubber seal
• Z: Single-side dust cover
• ZZ: Double-side dust cover
• N: Outer ring with retaining groove

Why Choose Deep Groove Ball Bearings?

✅ Versatile Load Capacity

• Handles radial loads primarily and supports bidirectional axial loads simultaneously
• Point-contact design enables higher speed limits than roller bearings, perfect for high-speed motor spindles
• Can substitute angular contact bearings by increasing radial clearance to boost axial load capacity

✅ Economic & Reliable

• Standardized mass production ensures competitive pricing
• Open-type bearings support lifetime lubrication; sealed types need zero maintenance
• Delivers 30,000–50,000 hours of service life under rated conditions

✅ Flexible Installation

• Compensates 2′–10′ shaft deflection to offset installation errors
• 11 structural variants available: open, shielded (Z/ZZ), sealed (RS/2RS), snap ring (N) types, etc.
• Full size range: from 1mm bore miniature bearings to over 440mm outer diameter large bearings

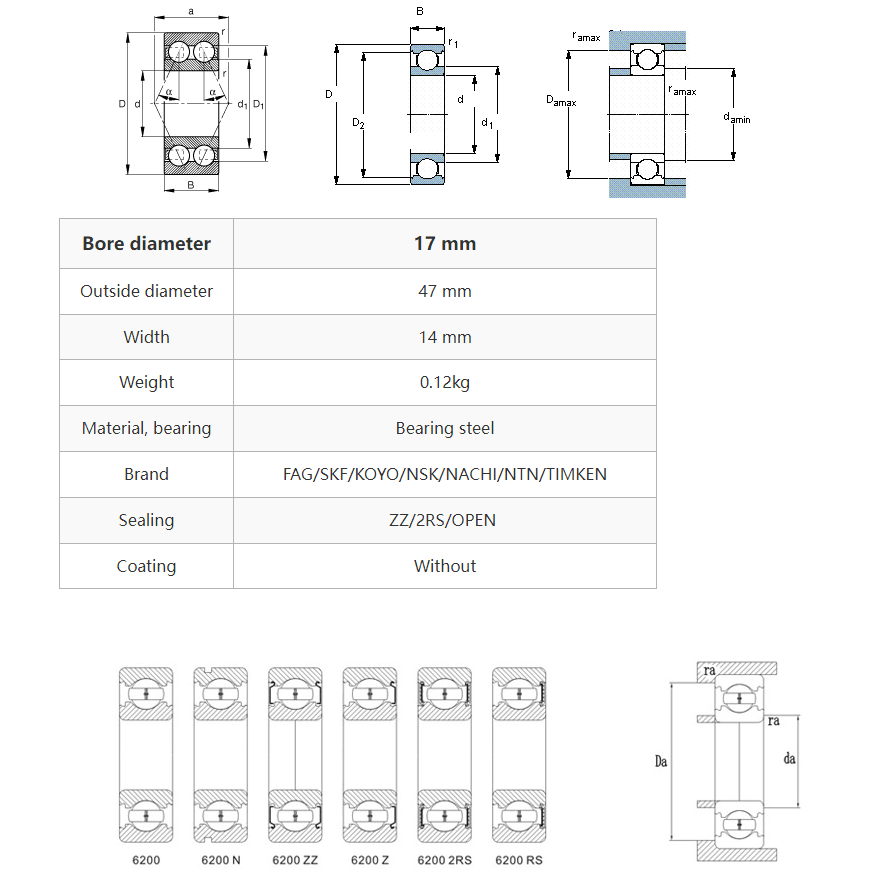

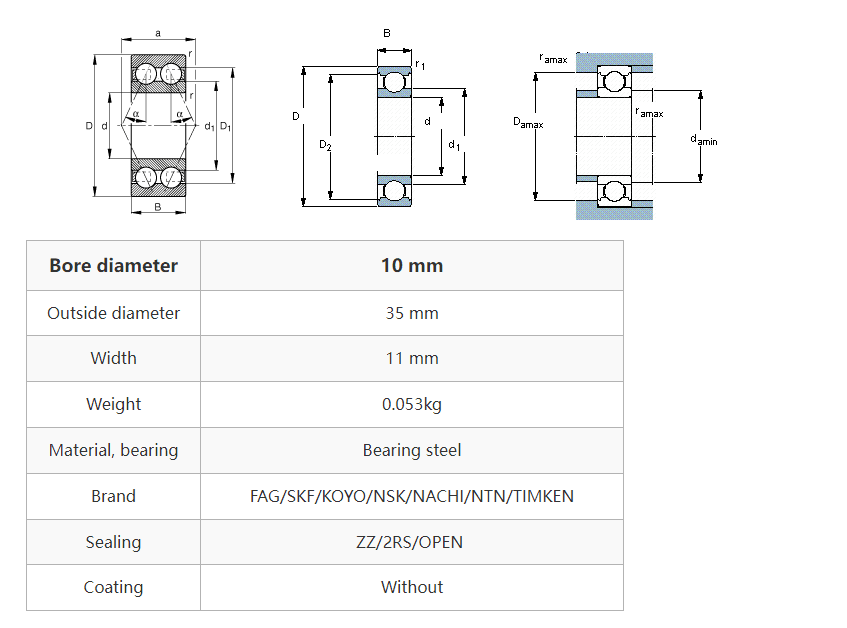

Key Specifications

• Design Standard: 60000 series designation system
• Common Dimensions: Bore (10–200mm), Outer Diameter (26–420mm), Width (8–80mm)
• Performance Highlights (6205 model as reference):
  • Dynamic Load Rating: 14.8 kN; Static Load Rating: 7.8 kN
  • Speed Limits: 15,000 r/min (grease lubrication); 18,000 r/min (oil lubrication)
  • Friction Coefficient: 0.0010–0.0015; Temperature Range: -40°C to +120°C

Main Series Overview

• 6000 Series: Compact structure, balanced performance
• 6200 Series: Light-load & high-speed, ideal for precision instruments and small motors
• 6300 Series: Medium-load & medium-speed, widely used in automotive transmissions and industrial pumps
• 6400 Series: Heavy-duty, suitable for construction machinery and heavy equipment
• 61800/61900 Series: Thin-section, designed for space-constrained applications

Why Choose Our Bearings?

• ✅ Premium Quality: Made of GCr15 bearing steel (HRC 60–65), ISO 9001 certified
• ✅ Adequate Stock: Full 6000–6400 series in stock, 24-hour delivery
• ✅ Customizable: Non-standard sizes, ceramic/stainless steel materials, high/low temperature adaptations available
• ✅ Professional Support: Free selection consultation and failure analysis by senior engineers
• ✅ Competitive Price: Factory-direct sales with volume discounts

FAQ Highlights

1. Deep Groove vs Angular Contact Bearings: Deep groove bearings (0° contact angle) focus on radial loads with limited axial capacity, cost less and run faster. Angular contact bearings (15°/25°/40°) handle high single-direction axial loads and are used in pairs.
2. Extend Service Life: Avoid overloading (>30% dynamic load rating); ensure clean installation; use proper lubricant; control temperature; use dedicated installation tools.
3. High-Speed Operation: 2RS sealed bearings have 15–20% lower speed limits than open types; choose Z/ZZ shielded bearings or open types with oil lubrication for speeds over 10,000 RPM.
4. Motor Bearing Temperature: Temperature rise is normal; keep it within ambient +55°C (max 95°C). Excessive heat indicates issues with lubrication, alignment, load or clearance.

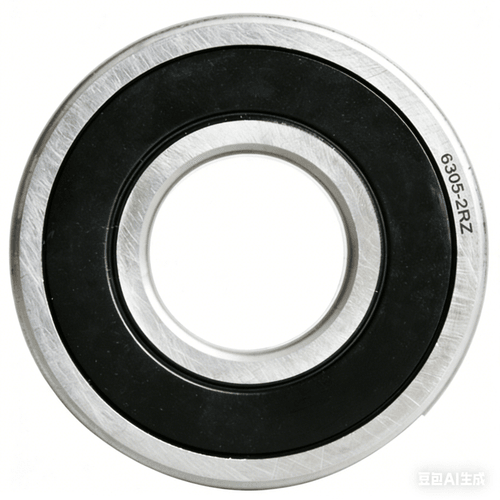

5. 6205 vs 6305: Same 25mm bore; 6305 has 40% higher load capacity (larger OD/width); choose 6305 for heavy loads, 6205 for space constraints or high speeds.

Get Professional Solutions

Our technical team offers optimal recommendations for standard bearings (e.g., 6203-2RS) and specialty types (e.g., VA208 high-temperature bearings).
